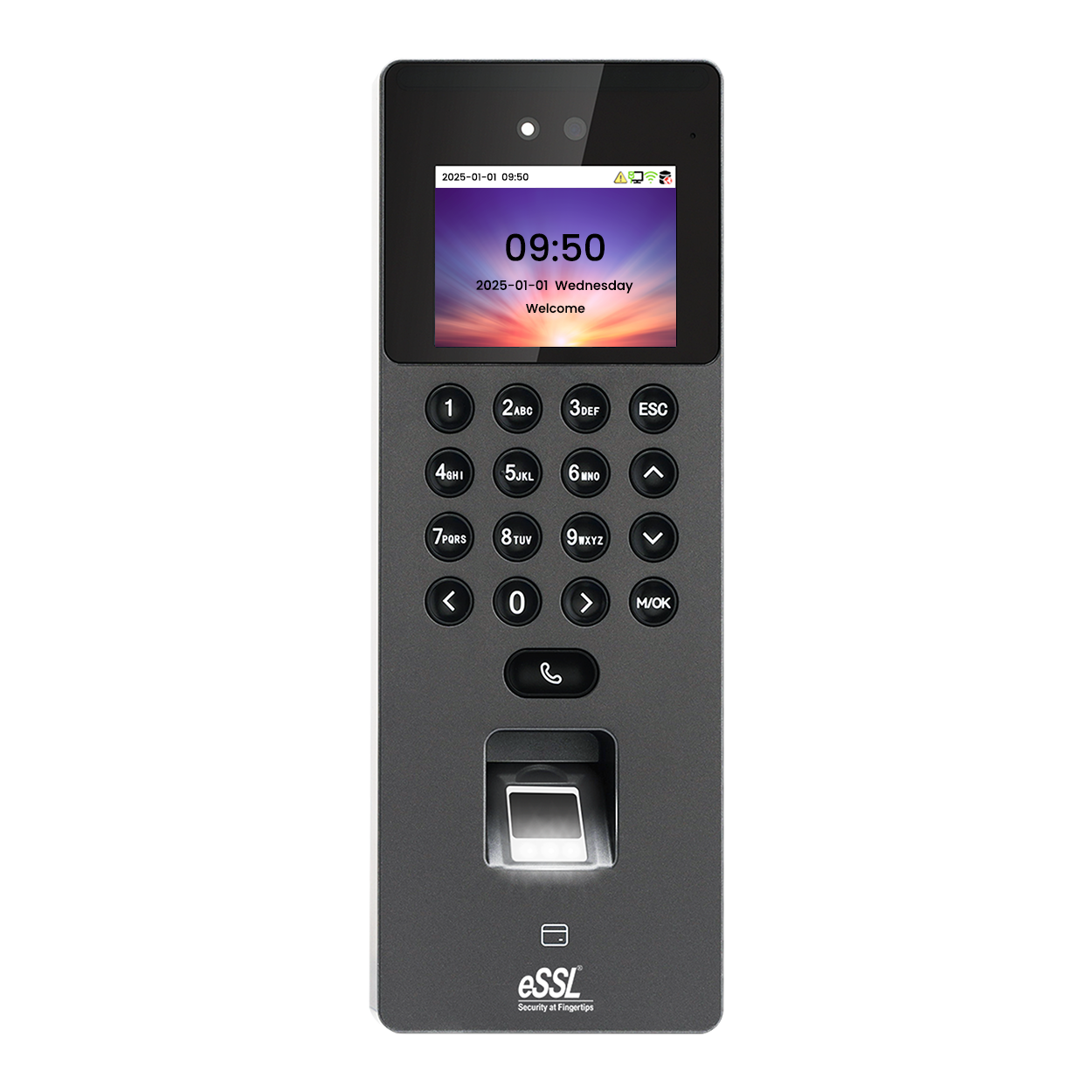

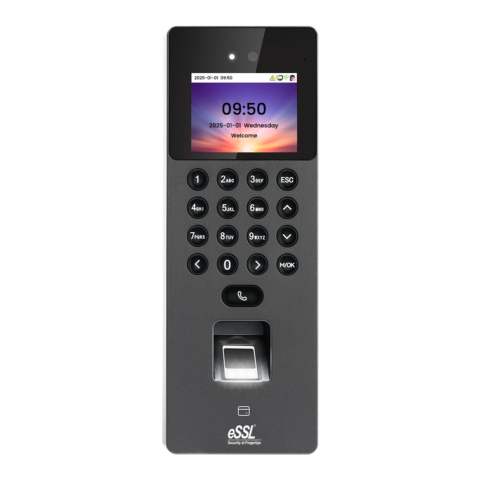

eSSL – Aiface Orcus

Technical Specifications

• Display : 2.4″@ TFT Color LCD Screen (320*240)
• Camera : WDR Binocular Camera @ 1MP
• Operation System : Linux
• Hardware : CPU: Dual Core@1GHz , RAM: 512MB , ROM: 8GB
• Multiple Authentication method : Fingerprint / Face / Card / Password
• Fingerprint Template Capacity : 3000
• Face Template Capacity : 1500
• Card Capacity : 3000
• User Capacity : 3000
• Transaction Capacity : 1,50,000
• Biometric Authentication Speed : Fingerprint: < 0.5 sec; Facial Authentication: < 0.35 sec
• Facial Authentication Distance : 30cm to 200cm
• False Acceptance Rate (FAR) % : Visible Light Facial Authentication : FAR ≤ 0.01% , Fingerprint : FAR ≤ 0.0001%
• False Rejection Rate (FRR) % : Visible Light Facial Authentication : FRR ≤ 0.02% , Fingerprint : FRR ≤ 0.01%
• Available RFID Module : Proximity Card@125 kHz (Standard)
• Communication : TCP/IP, Wi-Fi, USB
• Access Control Interface : Electro Magnetic Lock/ Electric Lock, Door Sensor, Exit Button
• Power Supply : DC 12V 1.5A
• Operating Temperature : -5°C to 45°C
• Operating Humidity : 20% to 80% RH (Non-condensing)
• Dimensions : 205.20 mm*74.19 mm*33.30 mm (L*W*H)
• Supported Software : eTimetracklite Software, ebioServer
