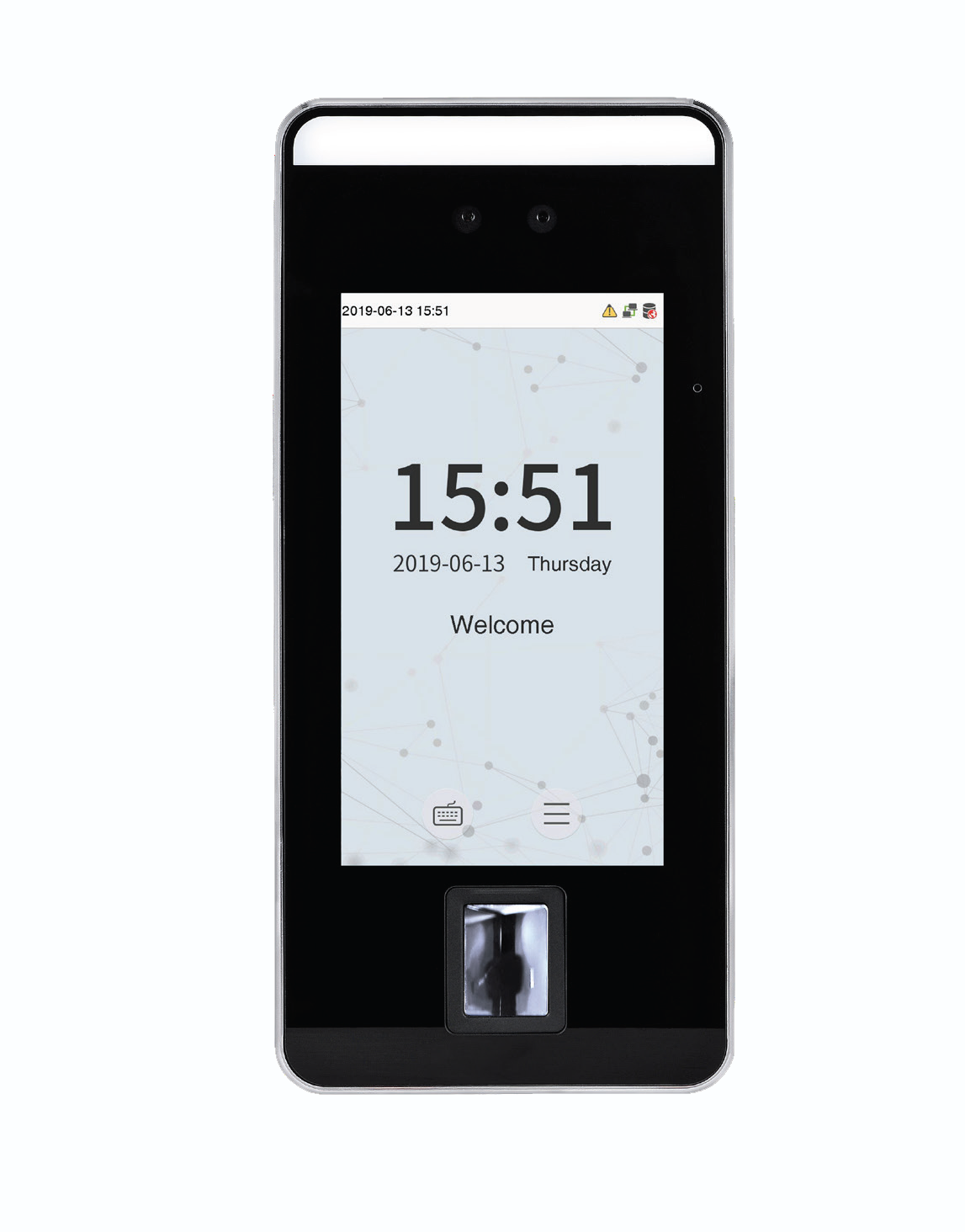

eSSL – AiFace Arion

Technical Specifications

• Display : 5-Inch
• Camera : WDR Low Light Camera @ 2MP
• Operation System : Linux
• Hardware : CPU: 1.GHz Dual Core , RAM: 1GB , ROM: 8GB
• Authentication Method : Face / Fingerprint / Card / Password (Virtual Keypad)
• Fingerprint Template Capacity : 6,000 (1:N)
• Face Template Capacity : 6,000 (1:N)
• Card Capacity : 10,000 (1:N)
• Transaction Capacity : 200,000 (1:N
• Biometric Verification Speed : Fingerprint: < 0.3 sec , Facial Recognition: < 1 sec
• Touchless Biometric Recognition Distance : 1cm to 100cm – Facial Recognition
• False Acceptance Rate (FAR) % : Facial Recognition: FAR ≤ 0.01% , Fingerprint: FAR ≤ 0.0001%
• False Rejection Rate (FRR) % : Facial Recognition: FRR ≤ 0.02% , Fingerprint: FRR ≤ 0.01%
• Card Type : Proximity ID Card@125 kHz , Mifare IC Card@13.56 MHz (Optional) , HID Prox, HID Iclass (Optional)
• Communication : TCP/IP, Wiegand (Input & Output),RS485,Wi-Fi
• Access Control Interface : Electro Magnetic Lock/ Electric Lock, Door Sensor, Exit Button, Alarm Output
• Power Supply : DC 12V 3A
• Operating Temperature : -10°C to 45°C
• Operating Humidity : 10% to 90% RH (Non-condensing)
• Dimensions : 91.93mm * 202.93mm * 21.5mm (L*W*H)
• Supported Software : eTimetracklite
