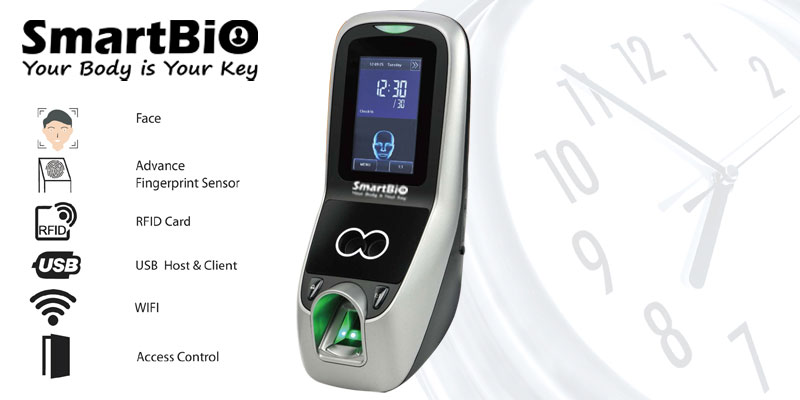

SmartBio MB700 Attendance and Access Biometric is a Face & Fingerprint time and attendance machine. The new multibio 700 is an innovative product featured with push data technology. It supports multiple authentication methods including face, fingerprint, password and those combinations. Multi-model communications consisting of TCP/IP, USB, host allow an extremely easy data management. What’s more, the new industrial design can be suitable for commercial markets, such as enterprise, bank and factory.
| Technical Specification | ||
|---|---|---|
| Storage Capacity | Fingerprint Capacity | 2000 |
| Face Capacity | 1500 | |
| Card Storage | 10000 | |
| Transaction Storage | 1,00,000 | |
| Card Reader | Yes | |
| Biometric | Image sensor | Special Sterio Dual Sensor |
| FAR | <=0.0001% | |
| FRR | <=1% | |
| Identication speed | <=1 sec | |
| Algorithm Ver | 10 | |
| Audio/Visual | Display | 3-inch Touch Screen |
| Keypad | 2 function key | |
| LED Indicator | Green/Red | |
| Schedule Bell/Speaker | Mini Speaker | |
| Communication | Communication | TRS232/485, TCP/IP, USB-Host |
| Push data | Yes | |
| Camera | High Resolution Infrared Camera | |
| Standard features | ID Card,Automatic Status Switch,Self Service QueryWork code | |
| Power & Environment | Power Supply | DC 12V, 1.5Amp |
| Operating Temprature | 0oC to 45oC | |
| Operating Humidity | 20% -80% | |
| Dimension | 195 x 100 x 275 mm | |
| Access Control | Wiegand | Both 26 & 32 Bit In and Out |
| Relay | 12 V | |
| Support Fire Alarm | Yes | |
| Door Sensor | Yes | |
| Anti Passback | Yes | |
| Door Bell | Yes | |
| Exit Readers | Support exit readers | R 500, 101 HE |
| Optional | Battery | NO |
| Card readers | Yes | |
| Communication | NO | |
| Dual Mode | Yes | |
| Compatibility | 3rd party electric lock, Door sensor, Exit button | |
