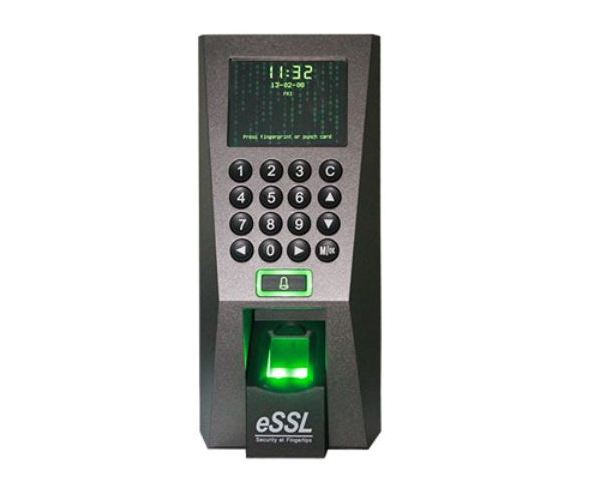

eSSL F18 Biometric Access Machine

• Fingerprints Capacity : 3000
• Card Capacity : 5000
• Transaction Capacity : 100000

BIOMETRIC

• CPU : 32 bit High End Microprocessor
• Fingerprint sensor : 500 DPI Optical sensor
• FAR : <=0.0001%
• FRR : <=1%
• Identification speed : <=0.5sec
• Algorithm Ver : 9/10

AUDIO & VISUAL

• Display : 2.8″ color TFT
• Keypad : Yes
• LED Indicator : Green/Red
• Schedule Bell/Speaker : Mini Speaker

COMMUNICATION

• Communication : TCP/IP,USB host
• Push data : Standard

STANDARD FUNCTIONS

• DLST, Self Service Query, Status Switch

POWER & ENVIRONMENT

• Power Supply : DC 12V — 1.5A
• Operating Temp : 0 °C – 45 °C
• Operating Humidity : 20% – 80%
• Battery : NO
• Dimensions (in mm) : (L)183 x (W)80 x (H)42

ACCESS CONTROL

• Wiegand : In & Out
• Relay : 12 V relay for lock EM lock, Bolt Lock or Strike lock
• Door Sensor : Yes
• Anti Passback : Yes
• Door Bell : Yes

EXIT READERS

• Support exit readers : FR 1200/KR 500

OPTIONAL

• Battery : No
• Card Readers : Yes
• Card Type : Mifare/HID Prox

COMPATIBILITY

• Compatible with Multi Door controllers via weigand
• External Speaker output available (Optional)
• External Bulb output available (Optional)

COMPATIBLE SOFTWARE AND SDK

• ETimeTrackLite desktop & web
• SDK for desktop applications
• Web based Device Manager/ePush server using Push data, Helps developers & integrators
• Supports 3rd Party Payroll/HRMS/ERP and Other applications

MAJOR APPLICATIONS

• Time & Attendance , Canteen management, School attedance, Production Management, Gym & clubs
